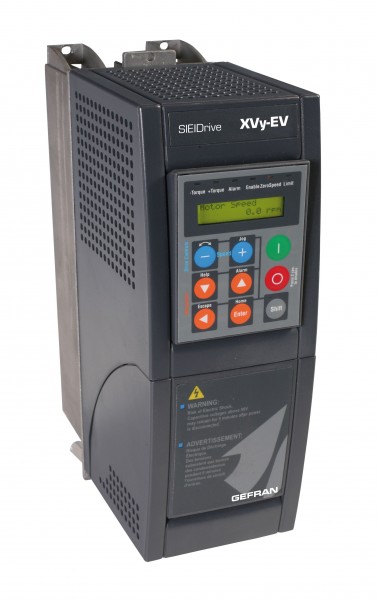

XVY - EV - Servodrives

Overview

XVy-EV series servodrives offer advanced technology for drives used in Motion Control applications, their high-bandwidth, powerful DSP and highly reliable power stage allows the drives to provide excellent control for a vast range of brushless servomotors and asyncronous motors.

XVy–EV implements next generation functions as a standard, to perfectly meet the most advanced architectures of the most modern industrial servo systems.

The integration in the drive of dedicated application software programs allows for unique customisations, to suit specific controls of complex machineries in sectors such as: working machineries for plastic material, sheet metal, textiles, wood, marble and printing presses, as well as in the most advanced automation solutions.

Flexible and powerful, XVy-EV can offer two programming modes for the intuitive implementation of both simple architectures and complex control systems.

Functions:

  • Double control for brushless motors and for asyncronous motors
  • Self-tuning of current regulator
  • 7 programmable multispeed
  • 4 independent programmable ramps (Acc/Dec and CW/CCW)
  • Encoder repetition / Auxiliary encoder
  • Jog function
  • Motor potentiometer function
  • “Speed Draw” function
  • Drive overload protection through I x T algorithm (for exceptional performances) and I2T (for standard overloads IEC146)
  • Thermal I2t protection for motor and braking resistor
  • Motor stationary braking management
  • “Coast through” and “Power loss stop” functions
  • “Helper” function via Fast Link
  • Drive working modes:
    • Torque and/or Speed
    • Position:standard positioning device and sequential multi-position controller
    • ELS,Electronic Line Shaft
  • Linear motors control
  • Field bus management: Profibus, CANopen, DeviceNet, Ethernet and internal Fast Link

Options:

  • Expansion boards for signal encoder repetition
  • I/O expansion boards useful according to the machine needs
  • Absolute encoder management with SSI, EnDat 2.2 and Hyperface protocols
  • Profibus-DP and GDnet field bus interface
  • Communication kit for internal Fast Link
  • Safety cards (motor side inhibition)
  • Developing tool for IEC 61131-3 standards: MDPlc 51.10
  • Software key enabling for DeviceNet interface: CODE DN-XVy
  • Standardised application SW programs in PLC mode
  • SHJ and SBM brushless servomotor series with powers up to 442Nm
  • Dedicated EMC filters (in compliance with CEE - EN61800 - 3:2004)
  • Input and Output chokes (standardized for the whole line)
  • Remote programming keypad kit
  • RS485 serial line kit for PC connection


Description

Servodrives, from 4kW (5Hp) up to 315kW (450Hp)

  • 3 x 230Vac…480Vac, 50/60Hz
  • Motor powers from 4kW (5Hp) up to 315kW (450Hp)
  • IP20 protection degree standard (external heatsink predisposition for IP54 mounting 15kW-20Hp)
  • Marks: CE, UL, cUL

Features:

  • Torque and/or Speed control
  • Positioning control (64 programmable registers)
  • Electronic Line Shaft function
  • Programmable digital inputs/outputs
  • Internal “Fast Link” bus at 3.125 Mbit/sec
  • CANopen interface (slave)
  • Current ratings [Arms]: from 8A up to 560A nominal (from 16A up to 800A of peak)
  • Maximum output frequency up to 450Hz (according to the drive power)
  • Braking Unit and Resistor integrated up to 15kW (20Hp) drive size
  • Optional integrated Braking Unit up to 55kW (60Hp) drive size
  • 2 Differential analog inputs ±10Vdc (11bit + sign)
  • 2 Analog outputs ±10Vdc (11bit + sign)
  • Digital I/O commands in PNP and/or NPN logic
  • 8 Digital inputs
  • 6 Digital output opto-coupled
  • 1 Digital relay output (NC-NO)
  • 1 RS485 serial input (Modbus RTU protocol)
  • 2 Inputs for internal “Fast Link” bus
  • 1 CANopen interface input (slave)
  • 1 Encoder / resolver input
  • 1 Auxiliary encoder input / repeater
  • Selectable speed feedback :
    • Incremental TTL (+5V) encoder + 3 Hall effect sensors
    • Sinusoidal 1Vpp (+5V) encoder + 2 SinCos trackes or 3 Hall effect sensors
    • 3 Hall effect sensors for positioning Single-Ended signal
    • Absolute signal with 2 SinCos trackes
    • Sinusoidal 1Vpp (+5V) or Incremental TTL (+5V) encoder
    • Two pole Resolver
  • Programming keypad with alphanumeric display (KBXV-EV)
  • Keyboard with memory for the drive parameter file
  • IP20 protection degree standard (external heatsink predisposition for IP54 mounting 32550 size).
  • IP00 protection degree for sizes 9470670 and 9560800, available also on C and CP models.
