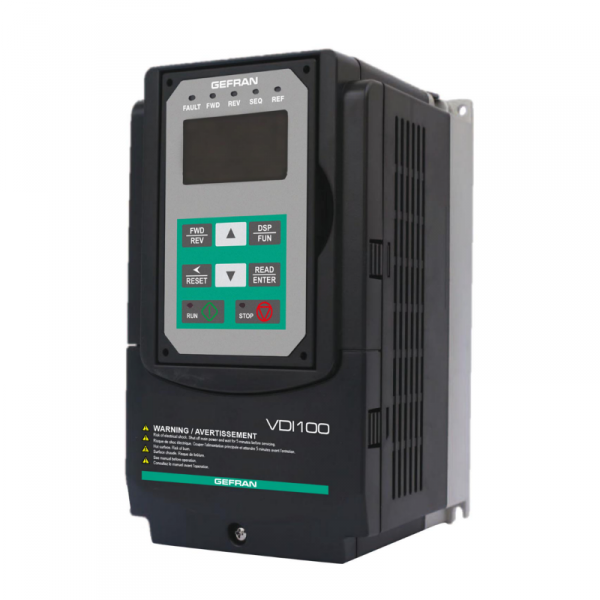

VDI100 - General Purpose Full Vector Inverter

Overview

VDI100 - General purpose full vector inverter, from 0.75kW up to 160 kW HD

  • Mains supply:
    • 3 x 200…240Vca, 50/60Hz (-2T models)
    • 3 x 380…480Vac, 50/60Hz (-4 models)
  • Motor ratings from 0.75kW (1Hp) to 160kW (215Hp) HD
  • Certifications: CE, cULus

Features:

  • Motor type: Asynchronous and Synchronous Motor (Surface Permanent Magnet Motor, Interior Permanent Magnet Motor)
  • Regulation control modes: V/f, V/f+Encoder, SLV (vector control open loop), SV (vector control closed loop), PMSLV (vector control open loop for Permanent Magnet Motor, PMSV (vector control closed loop for Permanent Magnet Motor)
  • Max Output frequency 599Hz
  • DC Choke integrated from 75 kW up to 160kW
  • EMC Filter integrated up to 45kW on -4 models
  • Dynamic Braking Module integrated up to 18.5kW models-2T and up to 30kW models -4
  • Heavy duty and Light duty overload management
  • Multilanguage programming software
  • Basic PLC Integrated
  • Integrated and removable programming keypad
  • 2 Analog inputs: AI1: -10~10V / 0~10V, AI2: 0~10V / 4~20mA
  • 2 Analog outputs: AO1:0~10V, AO2:0~10v/4~20mA
  • 8 Digital Inputs (PNP / NPN)
  • Digital Outputs: 2 (size 1) / 1 (all other sizes)
  • Relay Outputs: 1 (size 1) / 2 (all other sizes)
  • Others: PTC input (AI2), Pulse input (32kHz), Pulse output (32kHz)
  • RS485 Serial Line (Modbus RTU/ASCII protocol)
  • Interfacing with the most common fieldbus through communication modules for ProfiBus, CANopen, DeviceNet, TCP-IP
  • Sizes 1 to 5: IP20 / NEMA 1, with standard removable anti dust cover. Sizes 6-7: IP00; available optional NEMA 1 kit (cover and conduit box)

Description

VDI100 inverters series offer the utmost flexibility of application to modern automation systems and ensure ease of use, while guaranteeing advanced control capabilities for both asynchronous and permanent magnet SPM and IPM motors.
VDI100 inverter features an intuitive and user friendly interface to enable immediate motor start-up and system functions to implement control architectures for the most advanced application solutions, all with maximum energy efficiency.
The VDI100 series offer a perfect automation system integration with “universal” standard configuration, optional cards and accessories. All these elements offer real advantages in terms of product and system optimization and cost saving.

  • Wide motor control capability
  • Advanced auto-tuning
  • High level sensor vector mode
  • Fast computing ability
  • Conformity to global standards.

Functions:

  • Two auto-tuning Modes
  • Dual current rating
  • Dynamic Braking
  • Mechanical brake control
  • Simple PLC
  • PID control
  • Soft-PWM
  • KEB function
  • Droop function
  • Position control
  • Frequency traversing
  • Fire mode
  • Speed Search
  • Vector control in close loop with encoder
  • Application Presets
  • MODBUS communication
  • Options/accessories:
  • LCD keypad with internal memory
  • PC connection cable (RJ45/USB)
  • NEMA 1 kit for size 6 and 7
  • Braking unit
  • Encoder expansion cards
  • Fieldbus communication modules (Profibus, Canopen, Devicenet, TCPIP)
  • External EMC filters
  • Braking resistors
  • Chokes
