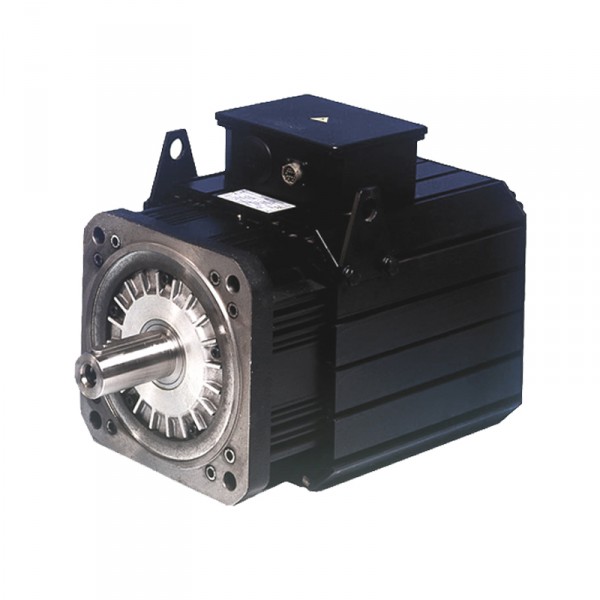

SBM Series Brushless Servomotors

Overview

The SBM series of low inertia brushless motors is designed to provide the highest level of achievable acceleration and deceleration characteristics, allowing the highest level of dynamic performance productivity and controllability, requiring a precise and ripid rapid mechanical transmission.
The SBM motors are available in six frame sizes, a wide continuous stall torque range (from 2 to 442 Nm) and speeds up to 4000 rpm.

Functions:

  • Thermal protection 130°C
  • Integrated two pole resolver

Options:

  • IP65 protection (not on motors with fan)
  • Feedback devices:
  • Digital encoder + hall sensors
  • 5-traces SinCos encoder
  • Absolute encoder with SSI and EN-DAT Protocol
  • Custom cable/connector output position (SBM 8-9)
  • Holding brake (supply voltage 24Vdc with tolerance of ±5%)
  • Custom windings
  • B3 flange
  • Fan (SBM 7)
  • Shaft: without key, custom diameter
  • Oil seal
  • Oil exhaust for direct gearbox coupling (SBM 8-9)
  • Accessories:
    • Removable power and signal connectors
    • Power and signal cables (custom length)

Description

The SBM motors range in continuous stall torque capability from 2 to 442 Nm and speeds up to 4000 rpm.

  • Rated power supply voltage: 400Vac (230Vac and 460 Vac option)
  • Rated speed: 1500, 2000, 3000 and 4000 rpm
  • Continuous stall torque capability: from 2 to 442Nm
  • Structure: B5 (B3&B5 option)
  • Marks: CE

Features:

  • Class F motor insulation; class H winding
  • Balancing: with half key
  • Shaft with key
  • Any functioning mounting position acceptable
  • B5 flange
  • IP54 protection

Connections:

  • power and encoder connectors (SBM 5-7)
  • conduit connection box with power terminals and signal connectors (SBM 8-9)
  • Maintenance free pre-lubricated ball bearings
  • Oil seal (SBM8, SBM9)
  • Number of pole: 8
