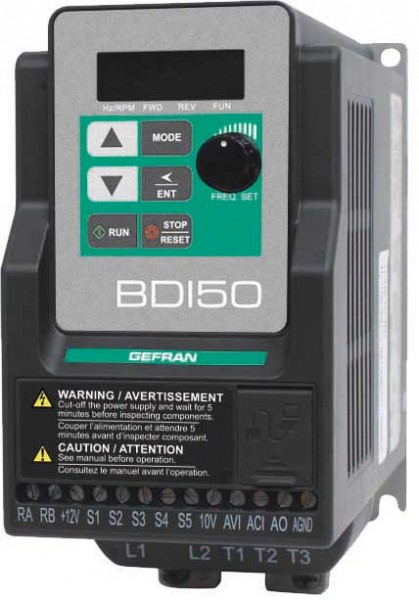

BDI50 - Compact V/F & Sensorless Inverter

Overview

BDI50 - Compact V/f and sensorless inverter, from 0.4kW up to 11 kW

  • Mains supply:
    • 1 x 200…240Vac, 50/60Hz (-2M models)
    • 3 x 200…240Vac, 50/60Hz (-2T models)
    • 3 x 380…480Vac, 50/60Hz (-4 models)
  • Motor ratings from 0.4kW (0.5Hp) to 11kW (15Hp)
  • Certifications: CE, cULus

Features:

  • Motor type: Asynchronous Motor
  • Regulation control modes: V/f, Sensorless (SLV)
  • Max Output frequency 599Hz
  • EMC Filter integrated (models -2M and -4)
  • RFI-switch for IT mains
  • Dynamic Braking Module integrated on models -4
  • Overload 150%/1min
  • 8 preset speeds
  • Multilanguage programming software
  • Integrated programming keypad
  • 2 Analog inputs: AVI: 0~10V/2~10V, ACI: 0~20mA / 4~20mA
  • 1 Analog output: 0-10V
  • 5 Digital Inputs (PNP / NPN depending on models)
  • Digital Outputs: 1, relay
  • Motor protection input: by PTC (AVI)
  • RS485 Serial Line (Modbus RTU/ASCII protocol)
  • Integrated Bacnet protocol
  • Interfacing with the most common fieldbus through communication modules for ProfiBus, CANopen, DeviceNet, TCP-IP
  • IP20 protection degree

Description

BDI50 inverter series concentrate all the characteristics required by modern industrial processes in a single compact product. At the same time BDI50 series comply with the typical needs of installers and system integrators who require forefront, practical solutions that are, above all, advantageous in terms of space, cost and simplicity of use. The BDI50 is simple and powerful and provide maximum flexibility in machine integration through standard and optional fieldbus compatibility. User friendly interface and easy operation make BDI50 the right solution for every user and for multi-purpose applications.

  • Sensorless and V/f motor control
  • Compact size and user friendly standard interface
  • High flexibility in machine integration
  • Conformity to global standards.

Functions:

  • Integrated keypad with potentiometer
  • Auto-tune
  • Torque and slip compensation
  • 8 preset speeds
  • DC brake
  • Mechanical brake control
  • PID control
  • Torque boost
  • Fan control
  • AVR function
  • Intelligent overvoltage suppression
  • Integrated MODBUS and BACNET communication
  • Auto-restart
  • Motor over-temperature protection by PTC
  • Stall prevention
  • Auto Carrier frequency adjust by Temperature

Options/accessories:

  • Copy unit
  • PC connection cable (RJ45/USB)
  • DIN rail kit for size 1 and 2
  • Fieldbus communication modules (Profibus, Canopen, Devicenet, TCPIP)
  • Braking resistors
  • Chokes
