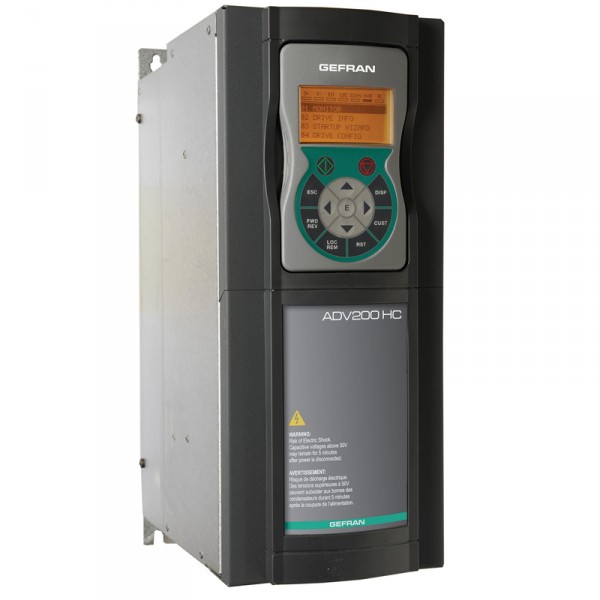

ADV200 - HC Field - Oriented Vector Inverter For Hoist & Crane

Overview

Field-oriented vector inverter, from 0.75kW up to 1.65MW

  • Mains supply:
    • 3 x 380…500Vac, 50/60Hz (-4 models )
    • 3 x 690Vac, 50/60Hz (-6 models )
    • 450…750Vdc (-DC-4 models)
    • 600…1120Vdc (-DC-6 models)
  • Motor ratings from 0.75kW (1Hp) to 1.65MW (2200Hp)
  • Certifications: CE. UL, cUL

Functions:

  • Self-tuning rotational and stand still of speed-current-flux regulators and motor data identification
  • Torque control
  • Simplified Start-up menu
  • Instantaneous Overload up to 180%
  • Motor, Drive and Braking resistor I2t thermal protection
  • 100% torque at zero-speed
  • Braking management
  • Function hoist speed-up
  • Function Anti-Sway
  • Function Overtravel,
  • Function Anti impact
  • Function Master/Follower
  • Multispeed function (16 programmable preset)
  • 4 independent programmable Multi-ramp
  • Double motor parameters setting
  • Joystick management
  • CT an VT operating mode
  • Memory Keypad with 5 parameters set

Options:

  • I/O expansion cards, configurable according to the customer's machine needs
  • Expansion cards for the management of auxiliary encoders
  • Field-bus interface cards: ProfiBus , CANopen, DeviceNet, GDNet, EtherCAT, EtherNet/IP
  • Safety Stop card in accordance with EN 954-1 (Cat.3) PL "e"
  • Braking resistors (standardized for the whole line)
  • Dedicated EMC filters (in compliance with CEE - EN61800-3:2004)
  • Input & Output chokes (standardized for the whole line)
  • OPT-485-ADV, RS485 optoisolatore per collegamenti multidrop in RS485
  • BUy, External Braking Unit for drives power over 55kW
  • AFE200 Regen Active Front End power supply unit
  • KB-ADV Remotable keypad kit

Features:

  • Regulation control modes: FOC with Speed feedback, FOC open loop, V/F
  • Max Output frequency 500Hz
  • DC Choke integrated up to 132kW
  • EMC Filter integrated
  • Dynamic Braking Module integrated up to 55kW
  • Heavy duty and Light duty overload management
  • Up to 4 options on board
  • Multilanguage programming software (5 languages)
  • Alphanumeric programming keypad
  • 2 Bipolar Analogue Inputs (Voltage/Current)
  • 2 Bipolar Analogue Outputs (1: Voltage/Current, 1: Voltage)
  • 6 Digital Inputs (PNP / NPN)
  • 2 Digital Outputs (PNP / NPN)
  • 2 Relay Outputs, single contact
  • RS485 Serial Line (Modbus RTU protocol)
  • Interfacing with the more common field bus: ProfiBus, CANopen, DeviceNet, EtherNet real.time GDNet, EtherCAT,
  • EtherNet/IP, ProfiNet
  • IP20 protection degree as standard (IP00 size 7 and parallel unit)

Description

The Krish Engineers ADV200 HC inverter series offers in a unique technology solution all the basic requirements demanded by the most modern industrial hoisting systems.

The specific features, the robustness, the safety standards as well as the application flexibility makes ADV200 HC the ideal inverter to meet the operational needs of the most advanced systems.

A smarter Drive range with high performance and advanced controls, but ,at the same time simple in programming and installation.

Krish Engineers, with the ADV200 HC drive offers a global control solution applied to each type of systems movement.

ADV200 HC is the universal drive: it can manage asynchronous motor with or without speed sensor (encoder) and it can control all the system movements, both hoisting and travelers (hoist, gantry, trolley).
